FTTH 12/24F Flat Drop Cable G657A2 PE Sheath Outdoor Waterproof

Name: FTTH 1224F Flat Drop Cable G657A2 PE Sheath Outdoor Waterproof
Brand: UNIFIBER-OEM
Price: 1 USD

Quality FTTH 12/24F Flat Drop Cable G657A2 PE Sheath Outdoor Waterproof for sale

Brand Name : UNIFIBER-OEM

Model Number : Flat Drop Cable

Certification : ROHS

Place of Origin : CHINA

MOQ : 10km

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000KM/Day

Delivery Time : 3~5 business days

Packaging Details : Carton box

Product : FTTH Outdoor 12/24 Fiber Flat Drop Cable PE Sheath

Fiber Counts : 12 or 24 cores

Cable Type : Flat

Fiber : G657A2

Jacket material : PE

Application : FTTH

Contact Now

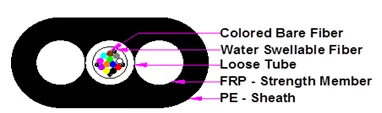

FTTH Flat Drop Fiber Optic cable,Designed for quick installation and ease in handling, serves as the last link for the FTTx networks of today. The design is Uni-Loose Tube containing up to 24 fibers.Two embedded FRP member to provide the mechanical properties of the cable. The finished product, with its compact size, acts as a self-supporting aerial solution for those last mile drops to the home or office.

Features

* 4/6/8/12 enhanced low water peak single mode fibers in full compliance with ITU-T-G.652D/G.657A1
* two all dielectric strength members (FRP)
* loose buffer tube fully filled and centrally placed in the cable
* UV stablized HDPE outer sheath, black

Fiber Type

Single mode fiber 9/125 (G.652D or G.657A1)
 Fibre used in the cable manufacturing fully comply to ITU-T-Rec G.652D or G.657A1
 Attenuation  at 1310 nm ≤0,38 dB/km
 at 1550 nm ≤0,25 dB/km

Fibre Colour Coding

Color of fibers in a tube: blue, orange, green, brown, slate, white, red, black, yellow, violet, rose & aquaColour of loose tube: Blue or as request

 Other fiber color sequences available on request.

Sub Unit - Loose Tube		Strength Member
Materials	PBT - polybutylene terephthalate	Materials	FRP - Glass fiber reinforced plastic rods
Color	White	Color	White
Diameter	2.1±0.05mm	Diameter	1.5±0.05mm
Numbe	1 Root	Numbe	2 Root
Outer Sheath		Waterblocking Yarn
Materials	PE - Polyethylene	Type	SZS-15.0 ×4 Root
Color	Black	Color	White
Diameter	3.8×7.8 ±0.2 mm
Numbe	1.0±0.1 mm

FTTH 12/24F Flat Drop Cable G657A2 PE Sheath Outdoor Waterproof
